The Bell X-1, originally designated XS-1, was a joint NACA
-U.S. Army/US Air Force supersonic research project built by Bell Aircraft
. Conceived in 1944 and designed and built over 1945, it eventually reached nearly 1,000 mph (1,609 km/h) in 1948. A derivative of this same design, the Bell X-1A, having greater fuel capacity and thus longer engine-burn time, exceeded 1,600 mph (2,574 km/h) in 1954. It was the first aircraft
to exceed the speed of sound
in controlled, level flight, and was the first of the so-called X-planes, an American series of experimental aircraft designated for testing of new technologies and usually kept highly secret.
On 16 March 1945, the United States Army Air Forces' Flight Test Division and the National Advisory Committee for Aeronautics
(NACA) (now NASA) contracted Bell Aircraft to build three XS-1 (for "Experimental, Supersonic", later X-1) aircraft to obtain flight data on conditions in the transonic speed range.
The X-1 was in principle a "bullet with wings", its shape closely resembled the Browning .50-caliber
(12.7 mm) machine gun bullet that was known to be stable in supersonic flight. The pattern shape was followed to the point of seating the pilot behind a sloped, framed window inside a confined cockpit in the nose, with no ejection seat. After the aircraft ran into compressibility problems in 1947, it was modified to feature a variable-incidence tailplane
. An all-moving tail was developed by the British for the Miles M.52
, and first saw actual transonic flight on the Bell X-1 that allowed it to pass through the sound barrier safely.
The rocket propulsion system was a four-chamber engine built by Reaction Motors, Inc., one of the first companies to build liquid-propellant rocket engines in America. It burned ethyl alcohol diluted with water and liquid oxygen. The thrust could be changed in 1500 lbf (6,672.3 N) increments by firing one or more of the chambers. The fuel and oxygen tanks for the first two X-1 engines were pressurized with nitrogen and the rest with steam-driven turbopumps. The all-important fuel turbopumps, necessary to raise the chamber pressure and thrust, while lightening the engine, were built by Robert Goddard who was under Navy contract to provide jet-assisted takeoff rockets.
, Jack Woolams
became the first to fly the XS-1, in a glide flight over Pinecastle Army Airfield, in Florida, on 25 January 1946. Woolams would complete nine additional glide flights over Pinecastle before March 1946, when the #1 aircraft was returned to Bell for modifications in anticipation of the powered flight tests, planned for Muroc Army Air Field (now Edwards Air Force Base
) in California. Following Woolams' death on 30 August 1946, Chalmers "Slick" Goodlin
was the primary Bell Aircraft test pilot of X-1-1 (serial 46-062). He made 26 successful flights in both of the X-1 aircraft from September 1946 until June 1947.
The Army Air Force was unhappy with the cautious pace of flight envelope expansion and Bell Aircraft's flight test contract for aircraft #46-062 was terminated and was taken over by the Army Air Force Flight Test Division on 24 June after months of negotiation. Goodlin had demanded a US$150,000 bonus for breaking the sound barrier. Flight tests of the X-1-2 (serial 46-063) would be conducted by NACA to provide design data for later production high-performance aircraft.
On 14 October 1947, just under a month after the United States Air Force
had been created as a separate service, the tests culminated in the first manned supersonic flight, piloted by Air Force Captain Charles "Chuck" Yeager
in aircraft #46-062, which he had christened Glamorous Glennis after his wife. The rocket
-powered aircraft was launched from the bomb bay of a specially modified B-29 and glided to a landing on a runway. XS-1 flight number 50 is the first one where the X-1 recorded supersonic flight, at Mach 1.06 (361 m/s, 1,299 km/h, 807.2 mph) peak speed.
As a result of the X-1's initial supersonic flight, the National Aeronautics Association voted its 1948 Collier Trophy
to be shared by the three main participants in the program. Honored at the White House
by President Harry S. Truman
were Larry Bell for Bell Aircraft, Captain Yeager for piloting the flights, and John Stack for the NACA contributions.
The story of Yeager’s 14 October flight was leaked to a reporter from Aviation Week, and The Los Angeles Times featured the story as headline news in their 22 December issue. The magazine story was released 20 December. The Air Force threatened legal action against the journalists who revealed the story, but none was ever taken.
On 5 January 1949, Yeager used Aircraft #46-062 to carry out the only conventional (runway) take off performed during the X-1 program, reaching 23000 ft (7,010.4 m) in 90 seconds.
. Only Yeager's skills as an aviator prevented him from dying that day; later Mel Apt would die testing the Bell X-2
under similar circumstances.
Ordered by the Air Force on 2 April 1948, the X-1A (serial 48-1384) was intended to investigate aerodynamic phenomena at speeds above Mach 2 (681 m/s, 2,451 km/h) and altitudes greater than 90,000 ft (27 km), specifically focusing on dynamic stability and air loads. Longer and heavier than the original X-1, with a bubble canopy for better vision, the X-1A was powered by the same Reaction Motors XLR-11 rocket engine. The aircraft first flew, unpowered, on 14 February 1953 at Edwards AFB, with the first powered flight on 21 February. Both flights were piloted by Bell test pilot Jean "Skip" Ziegler.
After NACA
started its high-speed testing with the Douglas Skyrocket
, culminating in Scott Crossfield achieving Mach 2.005 on 20 November 1953, the Air Force started a series of tests with the X-1A, which the test pilot of the series, Chuck Yeager
, named "Operation NACA Weep". These culminated on 12 December 1953, when Yeager achieved an altitude of 74700 feet (22,768.6 m) and a new air speed record of Mach 2.44 (equal to 1620 mph, 724.5 m/s, 2608 km/h at that altitude). Unlike Crossfield in the Skyrocket, Yeager achieved that in level flight. Shortly after, the aircraft spun out of control, due to the then not yet understood phenomenon of inertia coupling
. The X-1A dropped from maximum altitude to 25000 feet (7,620 m), exposing the pilot to accelerations of up to 8g, during which Yeager broke the canopy with his helmet before regaining control.
On 28 May 1954, Maj. Arthur W. Murray piloted the X-1A to a new record of 90440 feet (27,566.1 m).
The aircraft was transferred to NACA in September 1954. Following modifications, including the installation of an ejection seat, the aircraft was lost on 8 August 1955 while being prepared for launch from the RB-50 mothership, becoming the first of many early X-planes that would be lost to explosions.
instrumentation for thermal research (over 300 thermal probes were installed on its surface). It was similar to the X-1A except for having a slightly different wing. The X-1B was used for high speed research by the US Air Force starting from October 1954 prior to being turned over to the NACA in January 1955. NACA continued to fly the aircraft until January 1958 when cracks in the fuel tanks forced its grounding. The X-1B completed a total of 27 flights. A notable achievement was the installation of a system of small reaction rockets used for directional control, making the X-1B the first aircraft to fly with this sophisticated control system, later used in the North American X-15
. The X-1B is now at the National Museum of the United States Air Force
, Wright-Patterson Air Force Base
at Dayton, Ohio
, where it is displayed in the Museum's Research & Development Hangar.
and the North American F-100 Super Sabre eliminated the need for a dedicated experimental test platform.
(s/n #46-006), it was to be used for heat transfer research. The X-1D was equipped with a new low-pressure fuel system and a slightly increased fuel capacity. There were also some minor changes to the avionics set.
On 24 July 1951, with Bell test pilot Jean "Skip" Ziegler at the controls, the X-1D was launched over Rogers Dry Lake
, on what was to become the only successful flight of its career. The unpowered glide was completed after a nine-minute descent, but upon landing, the nose gear failed and the aircraft slid ungracefully to a stop. Repairs took several weeks to complete and a second flight was scheduled for mid-August. On 22 August 1951, the X-1D was lost in a fuel explosion during preparations for the first powered flight. The aircraft was destroyed upon impact after it was jettisoned from its EB-50A mothership.
The X-1E was the result of a reconstruction of the X-1-2 (serial 46-063), in order to pursue the goals originally set out for the X-1D and X-1-3 (serial 46-064), both lost in explosions in 1951. The cause of the mysterious explosions was finally traced to the use of Ulmer leather gaskets impregnated with tricresyl phosphate
(TCP), a leather treatment, which was used in the liquid oxygen
plumbing. TCP becomes unstable and explosive in the presence of pure oxygen and mechanical shock. This mistake cost two lives, caused injuries and lost several aircraft.
The changes included:
The X-1E first flew on 15 December 1955, a glide flight under the controls of USAF test pilot Joe Walker
. Walker left the X-1E program in 1958, after 21 flights, attaining a maximum speed of Mach 2.21 (752 m/s, 2,704 km/h). NACA research pilot John B. McKay
took his place in September 1958, completing five flights in pursuit of Mach 3 (1,021 m/s, 3,675 km/h) before the X-1E was permanently grounded following its 26th flight, in November 1958, due to the discovery of structural cracks in the fuel tank wall.
National Advisory Committee for Aeronautics
The National Advisory Committee for Aeronautics was a U.S. federal agency founded on March 3, 1915 to undertake, promote, and institutionalize aeronautical research. On October 1, 1958 the agency was dissolved, and its assets and personnel transferred to the newly created National Aeronautics and...
-U.S. Army/US Air Force supersonic research project built by Bell Aircraft
Bell Aircraft
The Bell Aircraft Corporation was an aircraft manufacturer of the United States, a builder of several types of fighter aircraft for World War II but most famous for the Bell X-1, the first supersonic aircraft, and for the development and production of many important civilian and military helicopters...
. Conceived in 1944 and designed and built over 1945, it eventually reached nearly 1,000 mph (1,609 km/h) in 1948. A derivative of this same design, the Bell X-1A, having greater fuel capacity and thus longer engine-burn time, exceeded 1,600 mph (2,574 km/h) in 1954. It was the first aircraft
Aircraft
An aircraft is a vehicle that is able to fly by gaining support from the air, or, in general, the atmosphere of a planet. An aircraft counters the force of gravity by using either static lift or by using the dynamic lift of an airfoil, or in a few cases the downward thrust from jet engines.Although...
to exceed the speed of sound
Speed of sound
The speed of sound is the distance travelled during a unit of time by a sound wave propagating through an elastic medium. In dry air at , the speed of sound is . This is , or about one kilometer in three seconds or approximately one mile in five seconds....
in controlled, level flight, and was the first of the so-called X-planes, an American series of experimental aircraft designated for testing of new technologies and usually kept highly secret.
Design and development
National Advisory Committee for Aeronautics
The National Advisory Committee for Aeronautics was a U.S. federal agency founded on March 3, 1915 to undertake, promote, and institutionalize aeronautical research. On October 1, 1958 the agency was dissolved, and its assets and personnel transferred to the newly created National Aeronautics and...
(NACA) (now NASA) contracted Bell Aircraft to build three XS-1 (for "Experimental, Supersonic", later X-1) aircraft to obtain flight data on conditions in the transonic speed range.
The X-1 was in principle a "bullet with wings", its shape closely resembled the Browning .50-caliber
.50 BMG
The .50 Browning Machine Gun or 12.7×99mm NATO is a cartridge developed for the Browning .50 caliber machine gun in the late 1910s. Entering service officially in 1921, the round is based on a greatly scaled-up .30-06 cartridge...
(12.7 mm) machine gun bullet that was known to be stable in supersonic flight. The pattern shape was followed to the point of seating the pilot behind a sloped, framed window inside a confined cockpit in the nose, with no ejection seat. After the aircraft ran into compressibility problems in 1947, it was modified to feature a variable-incidence tailplane
Tailplane
A tailplane, also known as horizontal stabilizer , is a small lifting surface located on the tail behind the main lifting surfaces of a fixed-wing aircraft as well as other non-fixed wing aircraft such as helicopters and gyroplanes...
. An all-moving tail was developed by the British for the Miles M.52
Miles M.52
The Miles M.52 was a turbojet powered supersonic research aircraft project designed in the United Kingdom in the mid 1940s. Design work was undertaken in secrecy between 1942 and 1945. In 1946 the Air Ministry prudently but controversially changed the project to a series of unmanned rocket-powered...
, and first saw actual transonic flight on the Bell X-1 that allowed it to pass through the sound barrier safely.
The rocket propulsion system was a four-chamber engine built by Reaction Motors, Inc., one of the first companies to build liquid-propellant rocket engines in America. It burned ethyl alcohol diluted with water and liquid oxygen. The thrust could be changed in 1500 lbf (6,672.3 N) increments by firing one or more of the chambers. The fuel and oxygen tanks for the first two X-1 engines were pressurized with nitrogen and the rest with steam-driven turbopumps. The all-important fuel turbopumps, necessary to raise the chamber pressure and thrust, while lightening the engine, were built by Robert Goddard who was under Navy contract to provide jet-assisted takeoff rockets.
Operational history
Bell Aircraft Chief Test PilotTest pilot
A test pilot is an aviator who flies new and modified aircraft in specific maneuvers, known as flight test techniques or FTTs, allowing the results to be measured and the design to be evaluated....
, Jack Woolams
Jack Woolams
Jack Woolams attended the University of Chicago for two years before joining the United States Army Air Corps. He served on active duty for approximately eighteen months, after which he returned to the University of Chicago and graduated with a degree in economics in June 1941.-Career and Flight...
became the first to fly the XS-1, in a glide flight over Pinecastle Army Airfield, in Florida, on 25 January 1946. Woolams would complete nine additional glide flights over Pinecastle before March 1946, when the #1 aircraft was returned to Bell for modifications in anticipation of the powered flight tests, planned for Muroc Army Air Field (now Edwards Air Force Base
Edwards Air Force Base
Edwards Air Force Base is a United States Air Force base located on the border of Kern County, Los Angeles County, and San Bernardino County, California, in the Antelope Valley. It is southwest of the central business district of North Edwards, California and due east of Rosamond.It is named in...
) in California. Following Woolams' death on 30 August 1946, Chalmers "Slick" Goodlin
Chalmers Goodlin
Chalmers H. "Slick" Goodlin was the second test pilot of the Bell X-1 supersonic rocket plane, and the first to operate the craft in powered flight...
was the primary Bell Aircraft test pilot of X-1-1 (serial 46-062). He made 26 successful flights in both of the X-1 aircraft from September 1946 until June 1947.
The Army Air Force was unhappy with the cautious pace of flight envelope expansion and Bell Aircraft's flight test contract for aircraft #46-062 was terminated and was taken over by the Army Air Force Flight Test Division on 24 June after months of negotiation. Goodlin had demanded a US$150,000 bonus for breaking the sound barrier. Flight tests of the X-1-2 (serial 46-063) would be conducted by NACA to provide design data for later production high-performance aircraft.
Mach 1 flight
United States Air Force
The United States Air Force is the aerial warfare service branch of the United States Armed Forces and one of the American uniformed services. Initially part of the United States Army, the USAF was formed as a separate branch of the military on September 18, 1947 under the National Security Act of...
had been created as a separate service, the tests culminated in the first manned supersonic flight, piloted by Air Force Captain Charles "Chuck" Yeager
Chuck Yeager
Charles Elwood "Chuck" Yeager is a retired major general in the United States Air Force and noted test pilot. He was the first pilot to travel faster than sound...
in aircraft #46-062, which he had christened Glamorous Glennis after his wife. The rocket
Rocket
A rocket is a missile, spacecraft, aircraft or other vehicle which obtains thrust from a rocket engine. In all rockets, the exhaust is formed entirely from propellants carried within the rocket before use. Rocket engines work by action and reaction...
-powered aircraft was launched from the bomb bay of a specially modified B-29 and glided to a landing on a runway. XS-1 flight number 50 is the first one where the X-1 recorded supersonic flight, at Mach 1.06 (361 m/s, 1,299 km/h, 807.2 mph) peak speed.
As a result of the X-1's initial supersonic flight, the National Aeronautics Association voted its 1948 Collier Trophy
Collier Trophy
The Collier Trophy is an annual aviation award administered by the U.S. National Aeronautics Association , presented to those who have made "the greatest achievement in aeronautics or astronautics in America, with respect to improving the performance, efficiency, and safety of air or space...
to be shared by the three main participants in the program. Honored at the White House
White House
The White House is the official residence and principal workplace of the president of the United States. Located at 1600 Pennsylvania Avenue NW in Washington, D.C., the house was designed by Irish-born James Hoban, and built between 1792 and 1800 of white-painted Aquia sandstone in the Neoclassical...
by President Harry S. Truman
Harry S. Truman
Harry S. Truman was the 33rd President of the United States . As President Franklin D. Roosevelt's third vice president and the 34th Vice President of the United States , he succeeded to the presidency on April 12, 1945, when President Roosevelt died less than three months after beginning his...
were Larry Bell for Bell Aircraft, Captain Yeager for piloting the flights, and John Stack for the NACA contributions.
The story of Yeager’s 14 October flight was leaked to a reporter from Aviation Week, and The Los Angeles Times featured the story as headline news in their 22 December issue. The magazine story was released 20 December. The Air Force threatened legal action against the journalists who revealed the story, but none was ever taken.
On 5 January 1949, Yeager used Aircraft #46-062 to carry out the only conventional (runway) take off performed during the X-1 program, reaching 23000 ft (7,010.4 m) in 90 seconds.
Legacy
The research techniques used in the X-1 program became the pattern for all subsequent X-craft projects. The NACA X-1 procedures and personnel also helped lay the foundation of America's space program in the 1960s. The X-1 project defined and solidified the post-war cooperative union between U.S. military needs, industrial capabilities, and research facilities. The flight data collected by the NACA in the X-1 tests then provided invaluable to further US fighter design throughout the latter half of the 20th century.Disposition
- X-1-1, aircraft #46-062 is currently on display in the Milestones of Flight gallery of the National Air and Space MuseumNational Air and Space MuseumThe National Air and Space Museum of the Smithsonian Institution holds the largest collection of historic aircraft and spacecraft in the world. It was established in 1976. Located in Washington, D.C., United States, it is a center for research into the history and science of aviation and...
in Washington, DC, alongside the Spirit of St. LouisSpirit of St. LouisThe Spirit of St. Louis is the custom-built, single engine, single-seat monoplane that was flown solo by Charles Lindbergh on May 20–21, 1927, on the first non-stop flight from New York to Paris for which Lindbergh won the $25,000 Orteig Prize.Lindbergh took off in the Spirit from Roosevelt...
and SpaceShipOne. - X-1B, aircraft #48-1385 is at the National Museum of the United States Air ForceNational Museum of the United States Air ForceThe National Museum of the United States Air Force is the official museum of the United States Air Force located at Wright-Patterson Air Force Base northeast of Dayton, Ohio. The NMUSAF is the world's largest and oldest military aviation museum with more than 360 aircraft and missiles on display...
, Wright-Patterson Air Force Base at Dayton, Ohio, on display in the Museum's Research & Development Hangar. - X-1E, aircraft #46-063, is on display in front of the NASANASAThe National Aeronautics and Space Administration is the agency of the United States government that is responsible for the nation's civilian space program and for aeronautics and aerospace research...
Dryden Flight Research CenterDryden Flight Research CenterThe Dryden Flight Research Center , located inside Edwards Air Force Base, is an aeronautical research center operated by NASA. On March 26, 1976 it was named in honor of the late Hugh L. Dryden, a prominent aeronautical engineer who at the time of his death in 1965 was NASA's deputy administrator...
headquarters building.
Variants
Later variants of the X-1 were built to test different aspects of supersonic flight; one of these, the X-1A, with Yeager at the controls, inadvertently demonstrated a very dangerous characteristic of fast (Mach 2 plus) supersonic flight: inertia couplingInertia coupling
Inertia coupling is a potentially lethal phenomenon of high-speed flight in which the inertia of the heavier fuselage overpowers the aerodynamic stabilizing forces of the wing and empennage...
. Only Yeager's skills as an aviator prevented him from dying that day; later Mel Apt would die testing the Bell X-2
Bell X-2
-Popular culture:* The 1956 film Toward the Unknown starred the X-2, William Holden, Lloyd Nolan and Virginia Leith. A brainwashed former POW tries to return to test flying; co-starring the Martin XB-51 and the Edwards AFB flight line....
under similar circumstances.
X-1A
After NACA
NACA
- Organizations :* National Advisory Committee for Aeronautics, the forerunner of the U.S. federal agency NASA* National Association for Campus Activities, an organization for programmers of university and college activities...
started its high-speed testing with the Douglas Skyrocket
Douglas Skyrocket
The Douglas D-558-2 Skyrocket was a rocket and jet-powered supersonic research aircraft built by the Douglas Aircraft Company for the United States Navy...
, culminating in Scott Crossfield achieving Mach 2.005 on 20 November 1953, the Air Force started a series of tests with the X-1A, which the test pilot of the series, Chuck Yeager
Chuck Yeager
Charles Elwood "Chuck" Yeager is a retired major general in the United States Air Force and noted test pilot. He was the first pilot to travel faster than sound...
, named "Operation NACA Weep". These culminated on 12 December 1953, when Yeager achieved an altitude of 74700 feet (22,768.6 m) and a new air speed record of Mach 2.44 (equal to 1620 mph, 724.5 m/s, 2608 km/h at that altitude). Unlike Crossfield in the Skyrocket, Yeager achieved that in level flight. Shortly after, the aircraft spun out of control, due to the then not yet understood phenomenon of inertia coupling
Inertia coupling
Inertia coupling is a potentially lethal phenomenon of high-speed flight in which the inertia of the heavier fuselage overpowers the aerodynamic stabilizing forces of the wing and empennage...
. The X-1A dropped from maximum altitude to 25000 feet (7,620 m), exposing the pilot to accelerations of up to 8g, during which Yeager broke the canopy with his helmet before regaining control.
On 28 May 1954, Maj. Arthur W. Murray piloted the X-1A to a new record of 90440 feet (27,566.1 m).
The aircraft was transferred to NACA in September 1954. Following modifications, including the installation of an ejection seat, the aircraft was lost on 8 August 1955 while being prepared for launch from the RB-50 mothership, becoming the first of many early X-planes that would be lost to explosions.
X-1B
The X-1B (serial 48-1385) was equipped with aerodynamic heatingAerodynamic heating
Aerodynamic heating is the heating of a solid body produced by the passage of fluid over a body such as a meteor, missile, or airplane. It is a form of forced convection in that the flow field is created by forces beyond those associated with the thermal processes...
instrumentation for thermal research (over 300 thermal probes were installed on its surface). It was similar to the X-1A except for having a slightly different wing. The X-1B was used for high speed research by the US Air Force starting from October 1954 prior to being turned over to the NACA in January 1955. NACA continued to fly the aircraft until January 1958 when cracks in the fuel tanks forced its grounding. The X-1B completed a total of 27 flights. A notable achievement was the installation of a system of small reaction rockets used for directional control, making the X-1B the first aircraft to fly with this sophisticated control system, later used in the North American X-15
North American X-15
The North American X-15 rocket-powered aircraft/spaceplane was part of the X-series of experimental aircraft, initiated with the Bell X-1, that were made for the USAAF/USAF, NACA/NASA, and the USN. The X-15 set speed and altitude records in the early 1960s, reaching the edge of outer space and...
. The X-1B is now at the National Museum of the United States Air Force
National Museum of the United States Air Force
The National Museum of the United States Air Force is the official museum of the United States Air Force located at Wright-Patterson Air Force Base northeast of Dayton, Ohio. The NMUSAF is the world's largest and oldest military aviation museum with more than 360 aircraft and missiles on display...
, Wright-Patterson Air Force Base
Wright-Patterson Air Force Base
Wright-Patterson Air Force Base is a United States Air Force base in Greene and Montgomery counties in the state of Ohio. It includes both Wright and Patterson Fields, which were originally Wilbur Wright Field and Fairfield Aviation General Supply Depot. Patterson Field is located approximately...
at Dayton, Ohio
Dayton, Ohio
Dayton is the 6th largest city in the U.S. state of Ohio and the county seat of Montgomery County, the fifth most populous county in the state. The population was 141,527 at the 2010 census. The Dayton Metropolitan Statistical Area had a population of 841,502 in the 2010 census...
, where it is displayed in the Museum's Research & Development Hangar.
X-1C
The X-1C (serial 48-1387) was intended to test armaments and munitions in the high transonic and supersonic flight regimes. It was canceled while still in the mock-up stage, as the birth of transonic and supersonic-capable aircraft like the North American F-86 SabreF-86 Sabre
The North American F-86 Sabre was a transonic jet fighter aircraft. Produced by North American Aviation, the Sabre is best known as America's first swept wing fighter which could counter the similarly-winged Soviet MiG-15 in high speed dogfights over the skies of the Korean War...
and the North American F-100 Super Sabre eliminated the need for a dedicated experimental test platform.
X-1D
The X-1D (serial 48-1386) was the first of the second generation of supersonic rocket planes. Flown from an EB-50ABoeing B-50 Superfortress
The Boeing B-50 Superfortress strategic bomber was a post-World War II revision of the Boeing B-29 Superfortress, fitted with more powerful Pratt & Whitney R-4360 radial engines, stronger structure, a taller fin, and other improvements. It was the last piston-engined bomber designed by Boeing for...
(s/n #46-006), it was to be used for heat transfer research. The X-1D was equipped with a new low-pressure fuel system and a slightly increased fuel capacity. There were also some minor changes to the avionics set.
On 24 July 1951, with Bell test pilot Jean "Skip" Ziegler at the controls, the X-1D was launched over Rogers Dry Lake
Rogers Dry Lake
Rogers Dry Lake is an endorheic desert salt pan in the Mojave Desert of Kern County, California. The lake derives its name from the Anglicization from the Spanish name, Rodriguez Dry Lake. It is the central part of Edwards Air Force Base as its hard surface provides a natural extension to the...
, on what was to become the only successful flight of its career. The unpowered glide was completed after a nine-minute descent, but upon landing, the nose gear failed and the aircraft slid ungracefully to a stop. Repairs took several weeks to complete and a second flight was scheduled for mid-August. On 22 August 1951, the X-1D was lost in a fuel explosion during preparations for the first powered flight. The aircraft was destroyed upon impact after it was jettisoned from its EB-50A mothership.
X-1E
Tricresyl phosphate
Tricresyl phosphate, abbreviated TCP, is an organophosphate compound that is used as a plasticizer and diverse other applications. It is a colourless, viscous liquid, although commercial samples are typically yellow...
(TCP), a leather treatment, which was used in the liquid oxygen
Liquid oxygen
Liquid oxygen — abbreviated LOx, LOX or Lox in the aerospace, submarine and gas industries — is one of the physical forms of elemental oxygen.-Physical properties:...
plumbing. TCP becomes unstable and explosive in the presence of pure oxygen and mechanical shock. This mistake cost two lives, caused injuries and lost several aircraft.
- A turbopump fuel feed system, which eliminated the high-pressure nitrogen fuel system used in '062 and '063. (Concerns about metal fatigue in the nitrogen fuel system resulted in the grounding of the X-1-2 after its 54th flight in its original configuration.)
- A re-profiled super-thin wing ( inches at the rootWing rootThe wing root is the part of the wing on a fixed-wing aircraft that is closest to the fuselage. On a simple monoplane configuration, this is usually easy to identify...
), based on the X-3 StilettoX-3 StilettoThe Douglas X-3 Stiletto was a 1950s United States experimental jet aircraft with a slender fuselage and a long tapered nose, manufactured by the Douglas Aircraft Company. Its primary mission was to investigate the design features of an aircraft suitable for sustained supersonic speeds, which...
wing profile, enabling the X-1E to reach Mach 2. - A 'knife-edge' windscreen replaced the original greenhouse glazing, an upward-opening canopy replaced the fuselage-side hatch and allowed the inclusion of an ejection seat.
- The addition of 200 pressure ports for aerodynamic data, and 343 strain gauges to measure structural loads and aerodynamic heating along the wing and fuselage.
The X-1E first flew on 15 December 1955, a glide flight under the controls of USAF test pilot Joe Walker
Joseph A. Walker
Joseph Albert "Joe" Walker was an American NASA test pilot, and member of the U.S. Air Force Man In Space Soonest program. In 1963, he made two X-15 Experimental rocket aircraft flights beyond the altitude of 100 kilometers - at the edge of outer space...
. Walker left the X-1E program in 1958, after 21 flights, attaining a maximum speed of Mach 2.21 (752 m/s, 2,704 km/h). NACA research pilot John B. McKay
John B. McKay
John B. McKay was one of the first pilots assigned to the X-15 flight research program at NASA's Flight Research Center, Edwards Air Force Base, California. As a civilian research pilot and aeronautical engineer, he made 30 flights in X-15s from October 28, 1960, until September 8, 1966...
took his place in September 1958, completing five flights in pursuit of Mach 3 (1,021 m/s, 3,675 km/h) before the X-1E was permanently grounded following its 26th flight, in November 1958, due to the discovery of structural cracks in the fuel tank wall.

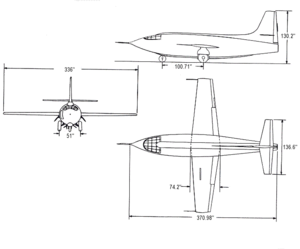

Specification (Bell X-1)
Specification (Bell X-1E)
